Mode Shape Extraction
Overview

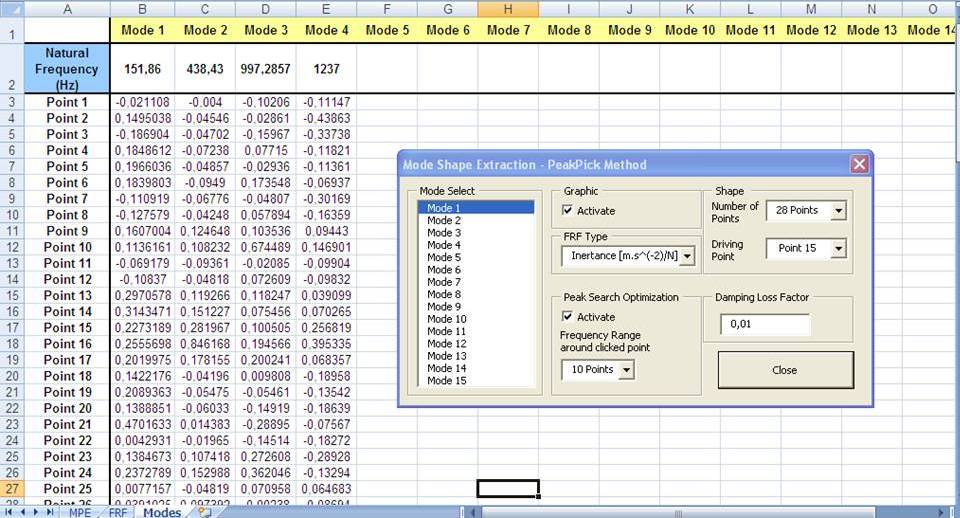

Estimating the mode shapes from a set of FRF's (imaginary part) using graphical "pick peak" method. The method assumes that modes are well separated and that damping is known.
Download Mode_Shape_Extraction.xlsm (Excel 2007-2010)
